X-Ray and Circuit Assembly Debugging

Diagnostic Services: X-Ray & Circuit Assembly Debugging

If your ailing electronic assembly needs some diagnosis, NRI can investigate the problem using highly trained and skilled technicians and engineers to probe through the electrical schematic to narrow down the cause of the failure. A long list test equipment includes oscilloscopes, multimeters, and fine tipped test probes, as well as, a 2000X magnification, pan & tilt 5-axis X-ray can take care of the hard-to-reach root cause to your circuit assembly failures.

We work with our customers to validate functional test equipment, debug test setup, repair customer supplied test systems and tooling, and provide test procedure feedback to clarify any process conflicts or missing test steps.

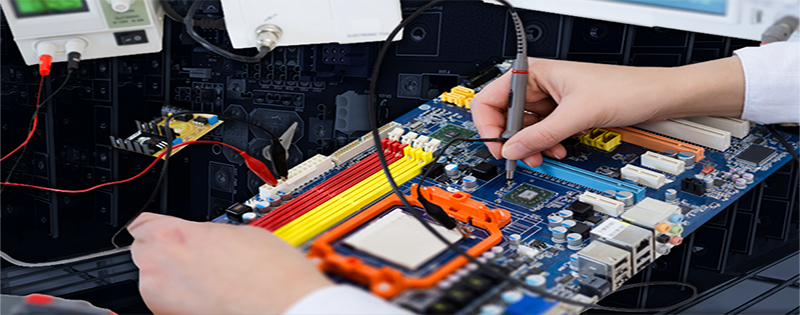

X-Ray and Circuit Assembly Debugging

Inspection Capabilities

  • Solder Paste Inspection (SPI)
  • Automated Optical Inspection (AOI)
  • 5-axis X-ray Inspection
  • IPC-A-610 Class 1, 2 & 3 Certified Inspectors

Circuit Testing Capabilities

  • In-Circuit Test (ICT)
  • Functional Test (FCT)
  • Continuity Testing, Debug & Diagnostics
  • Dielectric Withstand Testing (HIPOT)
X-Ray and Circuit Assembly Debugging
